IKONICS Corporation (SAATI)
Chromaline Pro-Coat Coater RECM390001 Auto Coater 2536 25x36 Dual
CH-PRO-COAT-2536
$19,995.00$0.00
Limited Availability
Sign in to buy
New to SPSI? Open an account
Ships same day from MN & TX · Free shipping on supply orders $300+
Coat two screens at once, front and back, with the same settings every time.
Overview

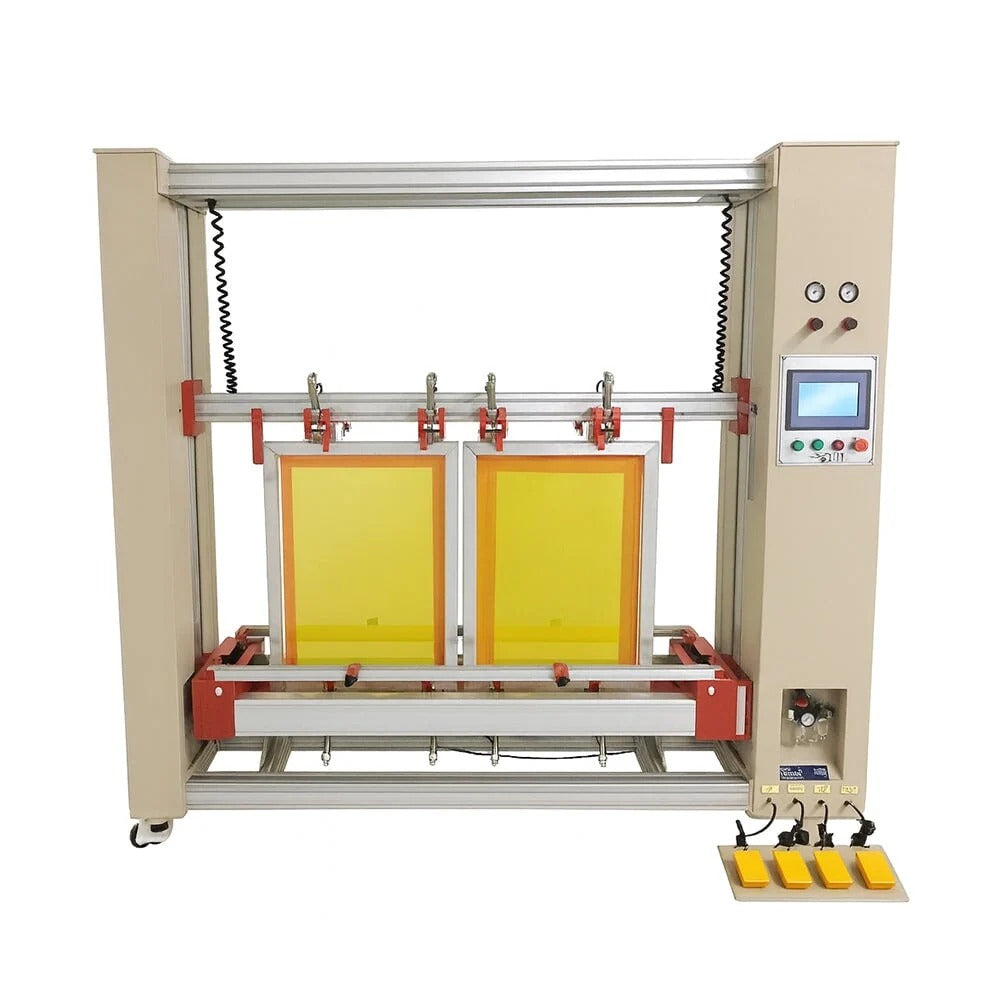

The SAATI Pro-Coat 25x36 Dual Screen Auto Coater automates emulsion coating with the emulsion of your choice. It coats two screens simultaneously, front and back: two 20x24, 23x31 or 25x36 frames at a time, or a single large screen.
Set dwell, number of coats and speed per side once, and every operator gets the same stencil. Consistent coating means more repeatable exposures and more repeatable prints, while doubling the coating output of a standard screen room.
Features
▼
-
Dual Screen Coating
Coats two frames at once, front and back. -
Fully Programmable
Touchscreen programs for dwell, coats and speed per side. -
Motorized Upper Carriage
Easy adjustment for different frame profiles. -
Foot Pedal Control
Upper carriage and frame clamps for easy loading and unloading. -
Belt Driven
Smooth, low-maintenance operation with the carriage enclosed for safety. -
Simple Trough Attachment
Quick trough changes between emulsions.
Specifications
▼
Model
SAATI Pro-Coat 25x36 Dual (RECM390001)
Dual Frame Capacity
Two 20x24, 23x31 or 25x36 frames
Single Frame Capacity
Up to 53" x 49"
Electrical
110 V, 20 A
Air
90 psi, less than 1 cfm
Warranty
6 months
