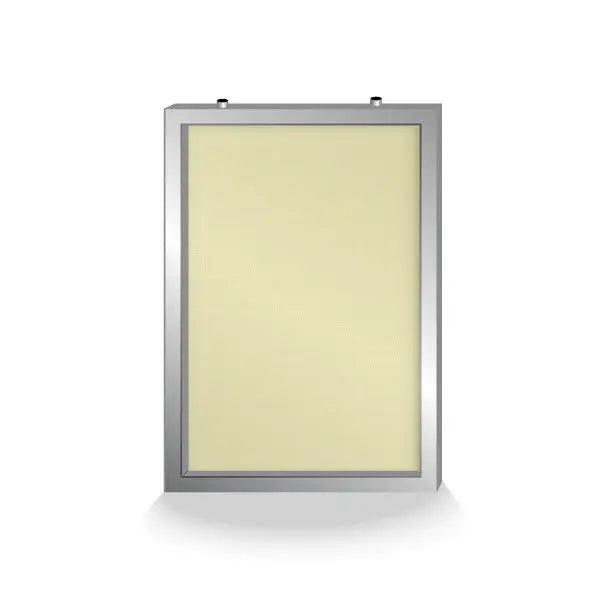

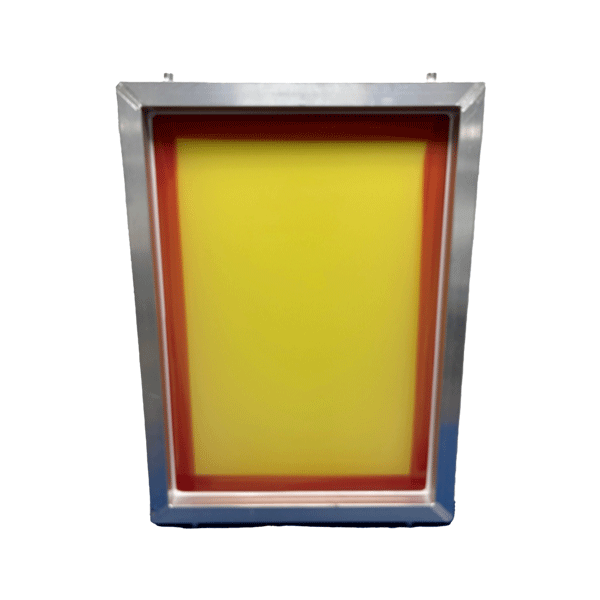

GSF 23" x 31" 280/34 Thin Thread Yellow Mesh Alum Frame W/ MHM Pins
Premium thin-thread aluminum screen printing frame featuring 280/34 yellow mesh, GSF Elite Screen Sealant technology, and welded MHM registration pins for exceptional detail reproduction and production efficiency.
Characteristics
The GSF 23" x 31" 280/34 Thin Thread Yellow Mesh Aluminum Frame W/ MHM Pins is engineered for screen printers who require outstanding detail, precise registration, and consistent print quality.
Built on GSF's proven aluminum frame platform, this frame combines high-performance thin-thread mesh technology with welded MHM registration pins to streamline setup and improve production accuracy.
The 280/34 thin-thread yellow mesh offers increased open area compared to standard mesh constructions, allowing excellent stencil definition while maintaining efficient ink transfer. This makes it an excellent choice for fine halftones, simulated process printing, detailed spot-color work, discharge inks, water-based inks, and high-end graphic applications where image clarity is critical.
As part of the GSF Elite series, this frame incorporates the GSF Screen Sealant System, a specialized edge-sealing technology designed to eliminate the need for traditional screen tape. This helps reduce labor, material costs, cleanup time, and waste throughout the printing and reclaiming process.
Combined with welded MHM registration pins, the frame delivers faster setups, improved repeatability, and reliable multicolor registration for demanding production environments.
- Premium 23" x 31" welded aluminum frame construction.
- 280/34 thin-thread yellow mesh for exceptional detail reproduction.
- Increased open area for improved ink flow and stencil performance.
- GSF Elite Screen Sealant System eliminates traditional screen taping.
- Welded MHM registration pins for fast and accurate setup.
- Excellent for fine halftones and high-detail graphic printing.
- Durable mesh tension for consistent print results.
- Resistant to warping and distortion during production.
- Reduces reclaim labor and material costs.
- Designed for manual and automatic screen printing presses.
- Use 280/34 thin-thread mesh when maximum image detail and stencil definition are required.
- Ideal for fine halftones, process color printing, simulated process separations, and intricate artwork.
- The thin-thread construction provides increased open area, allowing efficient ink transfer while maintaining exceptional detail.
- Yellow mesh helps reduce light scatter during exposure, improving edge definition and stencil accuracy.
- Apply thin, even emulsion coats to maximize detail retention and achieve optimal exposure results.
- Use controlled squeegee pressure to maintain sharp image edges and prevent excessive ink deposit.
- Particularly effective with water-based, discharge, and specialty inks where controlled ink transfer is critical.
- Take advantage of the welded MHM registration pins to improve registration accuracy and reduce setup time on repeat jobs.
- During reclaiming, use approved screen cleaning and emulsion removal products to protect mesh integrity.
- Store screens vertically in a clean, dry environment to maintain mesh tension and prevent damage to the thin-thread mesh structure.
