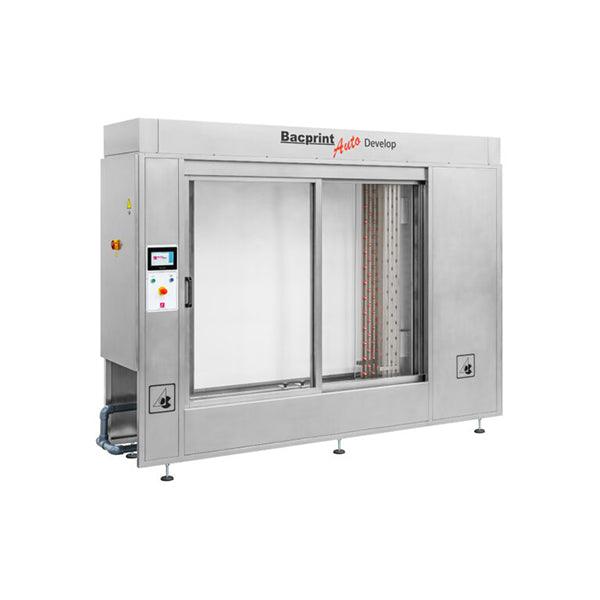

Acosgraf Bacprint Auto Developing Machine
Automatic screen printing frame developing and washout system engineered for consistent stencil development, featuring programmable high-pressure washing, independent front and rear water control, integrated backlighting, and reduced water consumption.
Overview
The Acosgraf Bacprint Auto Developing Machine is an automated screen developing and washout system designed to provide consistent, repeatable development of exposed screen printing frames. Built for professional screen rooms and production environments, the system automates the washout process to help reduce manual labor while improving consistency from screen to screen.
Designed to develop screens produced with capillary film as well as heavy layers of applied emulsion, the Bacprint Auto Developing Machine uses a high-pressure pump and specialized spray nozzles to efficiently open image areas after exposure. Pump pressure is controlled electronically, allowing operators to adjust the pressure according to the stencil, mesh, and application requirements.
A 7-inch color touchscreen provides centralized control of the developing process and allows operators to save up to 10 programs for commonly used screen configurations. Programs can be configured for the number of spray passes, water source, front and rear passes, and pressure applied to the screen, helping shops establish repeatable developing procedures for different stencil types.
Independent front and rear water control provides additional process flexibility, while a clean-water solenoid allows screens to be flushed with fresh water when required. The system also incorporates a solid-particle filter in the water discharge to assist with water treatment and screen-room cleanliness.
For easier inspection during development, the Bacprint Auto Developing Machine includes an integrated light source behind the screen. Sliding door guides simplify loading and unloading of frames, while the stainless-steel construction provides the durability required for demanding screen-room environments.
By automating and controlling the developing process, the Bacprint Auto Developing Machine can substantially reduce water consumption compared with conventional manual screen development while helping operators achieve more consistent stencil opening and production results.
- Automatic screen printing frame developing and washout system
- Designed for developing capillary film and screens with heavy emulsion coatings
- Fully constructed from stainless steel
- High-pressure pump for efficient stencil development
- Electronic inverter control for adjustable high-pressure pump operation
- Specialized high-pressure nozzles for effective image-area opening
- 7-inch full-color touchscreen control
- Stores up to 10 developing programs
- Fully configurable developing cycles
- Adjustable number of spray passes
- Selectable recycled or clean-water operation
- Independent control of front and rear spray passes
- Independent front and rear fresh-water flushing
- Adjustable pressure according to screen requirements
- Clean-water solenoid for final fresh-water rinsing
- Solid-particle filtration at the water outlet
- Integrated rear light source for easier screen inspection
- Sliding door guides for convenient frame loading
- Designed to significantly reduce water consumption compared with conventional developing methods
- Provides repeatable developing cycles for production screen rooms
- High-volume screen printing screen rooms
- Automated stencil development and screen washout
- Production environments requiring repeatable screen development
- Capillary film stencil development
- Direct emulsion and heavy emulsion coating applications
- Shops looking to reduce manual screen washout labor
- Operations seeking improved water-use efficiency
- Screen rooms requiring programmable development cycles
- Facilities processing multiple screen and stencil configurations
- Professional screen printing operations focused on standardized screen-room workflow
- Create and save dedicated programs for commonly used mesh counts, emulsions, coating thicknesses, and stencil types to improve repeatability.
- Adjust spray pressure according to the mesh and stencil being developed rather than using maximum pressure for every screen.
- Use independent front and rear passes when additional development is required on one side of the stencil.
- Use the fresh-water rinse function for the final wash when required by your screen-making process.
- Inspect the stencil using the integrated rear lighting to confirm that image areas are completely opened before removing the screen.
- Keep the solid-particle filtration system clean to maintain proper water flow and consistent machine performance.
- Follow the emulsion or capillary film manufacturer's exposure and washout recommendations for best results.
- Properly expose screens before automatic development; the developing system cannot compensate for significantly underexposed or overexposed stencils.
- Establish standardized programs for frequently produced screens to minimize operator variation and improve screen-room productivity.
- Follow Acosgraf installation, operating, maintenance, and water-treatment requirements for the specific machine configuration.
